Miracle Synergy Fractional Matrix Microneedle Radiofrequency

Fractional, Matrix, and Microneedle Radiofrequency System (Microneedling RF)

Evolve your practice's operational standard, introduce the most powerful collagen induction treatment on the current market, and equip your clinic with a high-fidelity European standard thanks to the Alvi Prague Miracle Synergy Device. Designed with advanced medical engineering in the Czech Republic, this robust platform represents the technological pinnacle in non-surgical tissue rejuvenation. By cleanly unifying robotic microneedling, fractional matrix radiofrequency, and cryogenic shock in a single hardware, the Miracle Synergy model fundamentally restructures the dermo-epidermal layers of the face and body, achieving immediate tightening with results comparable to a surgical facelift.

With a sleek industrial chassis of **39 x 44.7 x 34 cm** and a professional net weight of **20.6 kg**, this system is optimized to provide maximum stability and metrological precision in advanced dermo-aesthetic treatment rooms. The equipment is controlled via an interactive touch interface that allows for millimeter-accurate calibration of depth, vacuum, and pulse time variables. Manufactured under the rigorous quality controls of the European Union (official CE certification and EU standards), it operates connected to standard **220-240 V / 50 Hz** networks with a power consumption of **250 W or less**, backed by an **IP31 protection class** for superior insulation against ingress and humidity.

Advanced Synergistic Effect: Triple Vector of Structural Regeneration

The great competitive advantage of the Alvi Prague Miracle Synergy station lies in its versatility to cleanly treat superficial and deep skin layers through its three working modes:

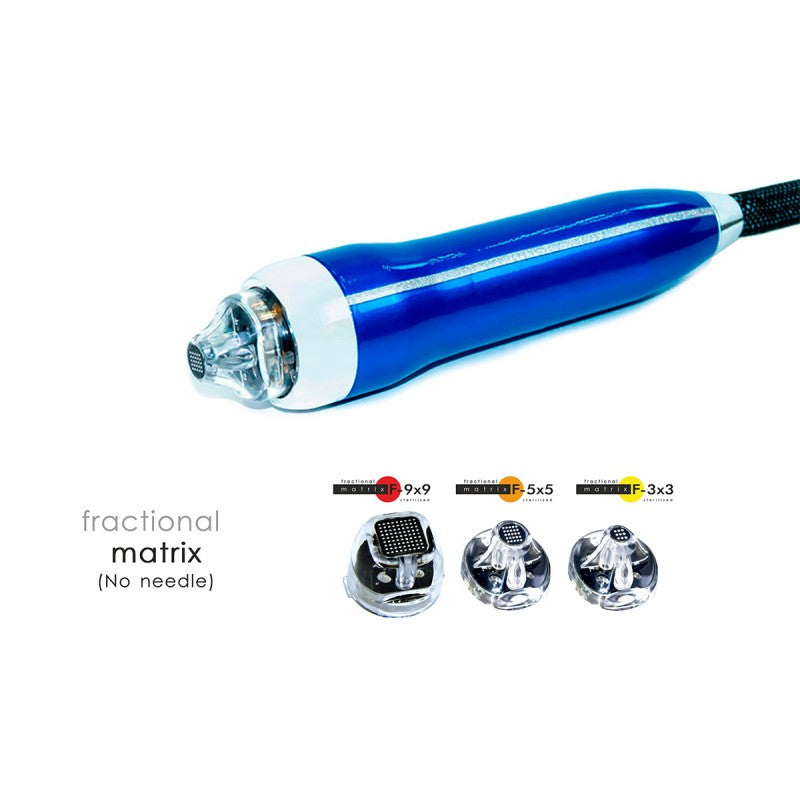

• Fractional Matrix Radiofrequency (Non-Invasive): Processes the superficial skin relief using a fractional handpiece that distributes energy in a grid. It heats the papillary dermis without damaging or aggressing the outer epidermal layer, achieving visibly firmer, toned skin with refined pores in an elastic manner.
• RF Microneedling Lift (Minimally Invasive): Combines robotic mechanical perforation with a focused thermal discharge of **2 MHz** and an exposure power of up to **50 W** (adjustable in 10 levels). The microneedles penetrate to a strict depth of **0.4 to 4 mm** assisted by a vacuum system (levels 1 to 4) that stabilizes the tissue. Upon reaching the deep dermis, it emits an elastic pulse of **10 to 900 microseconds** that locally raises the temperature to **52-55°C**, causing immediate collagen contraction and forcing massive neocollagenesis.
• Mono and Bipolar Operational Flexibility: The microneedle handpiece can be configured in Monopolar mode (for deep thermal penetration and macro-remodeling of cellulite or severe flaccidity) or Bipolar mode (for controlled and precise thermal impact on periorbital and perioral wrinkles, and scars).
• Advanced Cryo-Closure Handpiece: Terminal thermal unit with 3 levels of express cooling that drops **to -10 °C**. It instantly closes micro-perforated channels, calms erythema, reduces inflammation, and cleanly seals the treatment.

High-End Clinical and Dermo-aesthetic Indications

• Extreme Flaccidity, Gravitational Ptosis, and Loss of Facial Oval: Induces a deep bio-lift in the face, neck, décolleté, and arms, tightening sagging elastic structures.
• Deep Wrinkles, Mimic Lines, and Periorbital Aging: Smooths and fills imperfections through impeccable thermal compaction of connective tissue.
• Acne Scars, Stretch Marks, Irregular Texture, and Cellulite: Forces the remodeling of damaged fibrous tissues, promoting healthy and accelerated cell regeneration in a crisp manner.

Table of Technical Specifications and Official Parameters

Technical Application Protocol in Practice (Step-by-Step):

1. Hygiene, Antisepsis, and Preparation: Thoroughly clean the skin surface to be treated. Perform a strict clinical disinfection protocol. If applying the invasive microneedling mode, apply high-concentration topical anesthetic 30 minutes before the procedure and remove it completely before cleanly starting.
2. Hardware Configuration and Cartridge Insertion: Install the selected sterile cartridge (e.g., 18 or 25 needles for scars or facial areas; 64 or 81 needles for large body areas). Calibrate the penetration depth on the touch screen (e.g., **1.0 to 1.5 mm** on cheeks, **0.5 mm** in the periorbital area). Adjust the RF power (levels 1-10) and determine the pulse delivery mode (Single for manual step-by-step control or Automatic for smooth express movement).
3. Robotic Microneedling RF Procedure: Place the handpiece perpendicularly on the skin. The vacuum system (levels 1-4) will gently suction the tissue elastically, ensuring uniform needle penetration. Upon reaching the preset depth, the device will release the 2 MHz pulse crisply for the indicated microseconds. Work in quadrants using linear passes without excessive overlapping of shots.
4. Express Cryogenic Closure: After finishing the microneedling sweep, cleanly remove the cartridge. Immediately turn on the cryotherapy handpiece, setting it to its maximum level (up to -10 °C). Move the cold surface over the treated area with gentle smoothing movements; this will instantly relieve thermal discomfort, crisply mitigate erythema, and impeccably close the microchannels.

💡 Pro Tip: The most common operational error when using the Miracle Synergy system is setting an ultra-long pulse duration (e.g., 800 µs) combined with a very superficial needle depth (e.g., 0.6 mm) at high powers. Because the 2 MHz radiofrequency emits heat of up to 55°C right at the tip of the needles, if the needle is too close to the epidermal surface and the pulse is prolonged cleanly, the heat will transfer sharply upwards, damaging the epidermis and risking the appearance of post-inflammatory hyperpigmentation (PIH). **Keep pulses short (between 50 and 200 µs) for superficial depths on the face, and reserve long pulses (400 to 800 µs) exclusively when working in the deep dermis from 2.0 mm on body areas or dense scars**. This rigorous methodological care will guarantee excellent recovery, optimize elastic remodeling, and consolidate the clinical prestige of your advanced practice.

Engineering Guarantee and Official Training: Alvi Prague supports the sophisticated Miracle Synergy station with permanent technical support and specialized advice throughout the equipment's useful life. In addition, an advanced professional technical training service on demand with official certification for your operating personnel is included.
