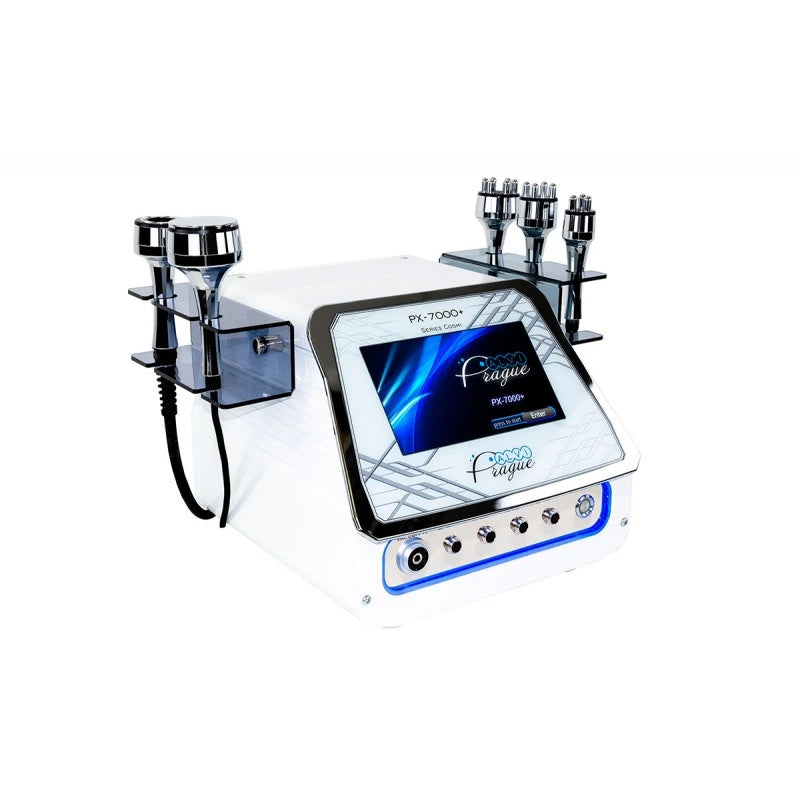

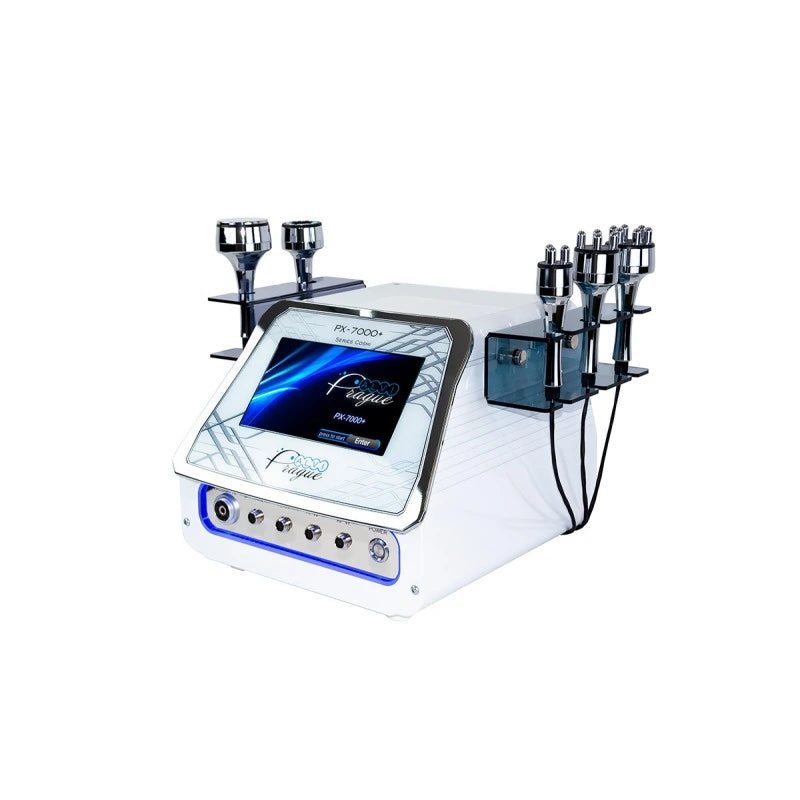

PX-7000 plus cavitation and radiofrequency machine

Multifunction Cavitation 38 kHz, Multipolar Radiofrequency, and Thermal Vacuotherapy System

Maximize the metrological performance of your cabin, unify the most commercially in-demand non-invasive body and facial treatments, and equip your practice with a high-fidelity European standard thanks to the Alvi Prague PX-7000 Plus Cavitation and Radiofrequency Machine. Meticulously designed in the Czech Republic, this advanced professional hardware integrates three leading clinical technologies into a single, intelligently designed chassis: low-frequency ultrasonic cavitation, multilayer radiofrequency, and vacuotherapy with thermal contrast. An ideal station for advanced clinics and centers looking to eliminate localized fat, reverse cellulite, and treat skin aging cleanly and with unbeatable financial profitability.

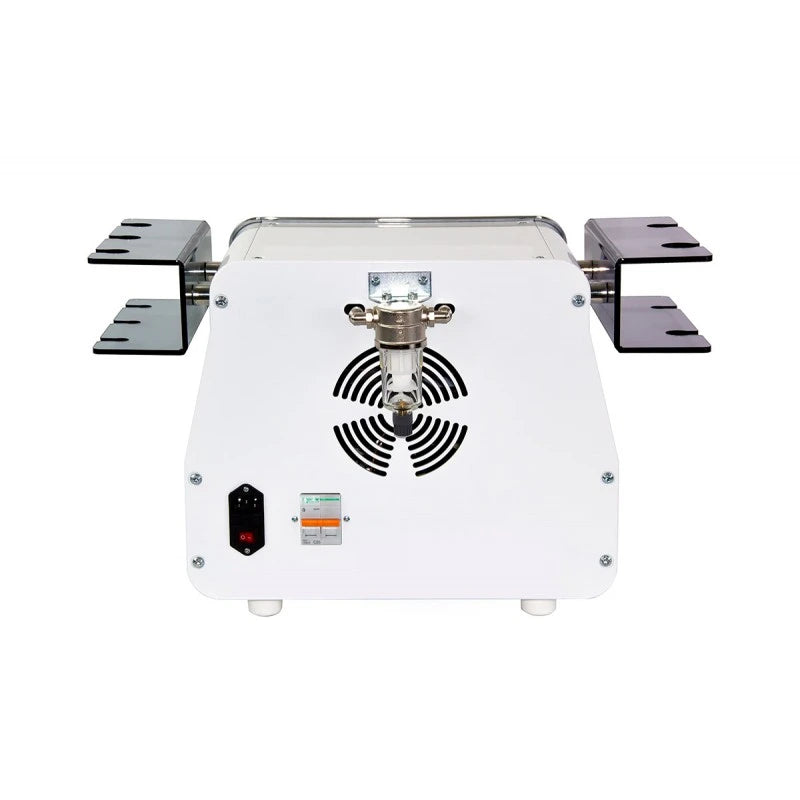

With a robust and highly stable industrial frame measuring 39 x 44.7 x 34 cm and a net weight of 13.19 kg (19.5 kg gross with its reinforced packaging of 55.5 x 47.5 x 57.5 cm), the PX-7000 Plus stands out for its premium ergonomics. The equipment is flexibly controlled via a color LCD touch screen with an intuitive interface and integrated protocols to facilitate the exact calibration of physical forces. Manufactured under the rigorous safety and quality standards of the European Union (Official CE Certification), the hardware operates connected to conventional 220-240 V / 50 Hz networks with an extraordinarily low electrical consumption of only 45 W or less, backed by an IP20 protection class and a total protection system against overheating and electrical accidents.

Advanced Synergistic Effect: 3 Physical Forces for Rejuvenation and Structural Modeling

The great competitive advantage of the PX-7000 Plus model lies in its ability to coordinate and superimpose different electromechanical stimuli, generating a deep biological response without surgery or recovery time:

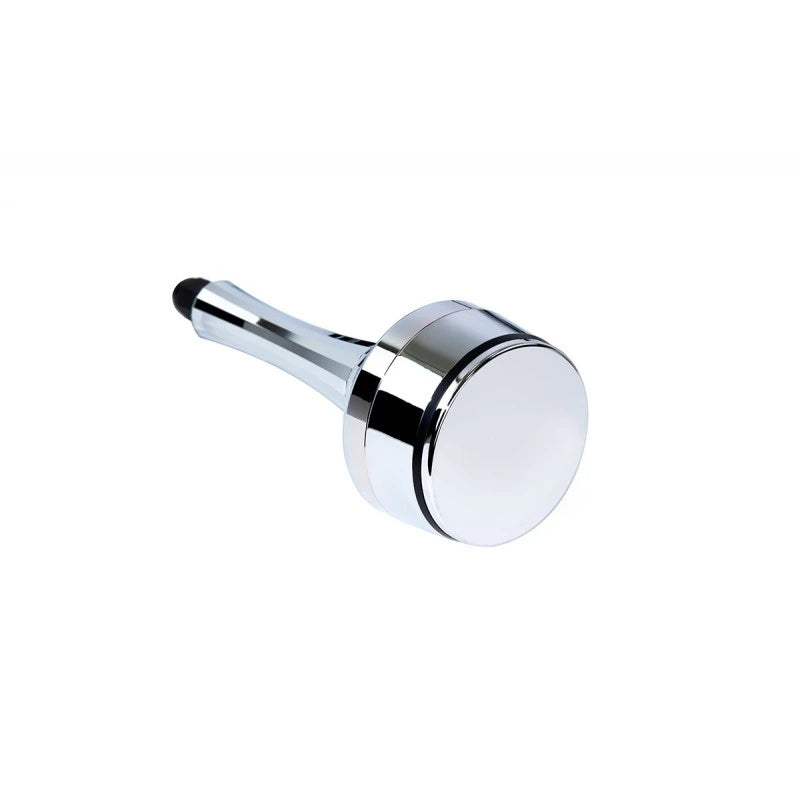

• Low-Frequency Ultrasonic Cavitation (38 kHz ± 5%): Emits high-intensity acoustic waves that operate in three technical modes (A, B, and C). Generates vacuum microbubbles that cleanly break the membranes of adipocytes, forcing the emulsion and natural elimination of dense fatty tissue.

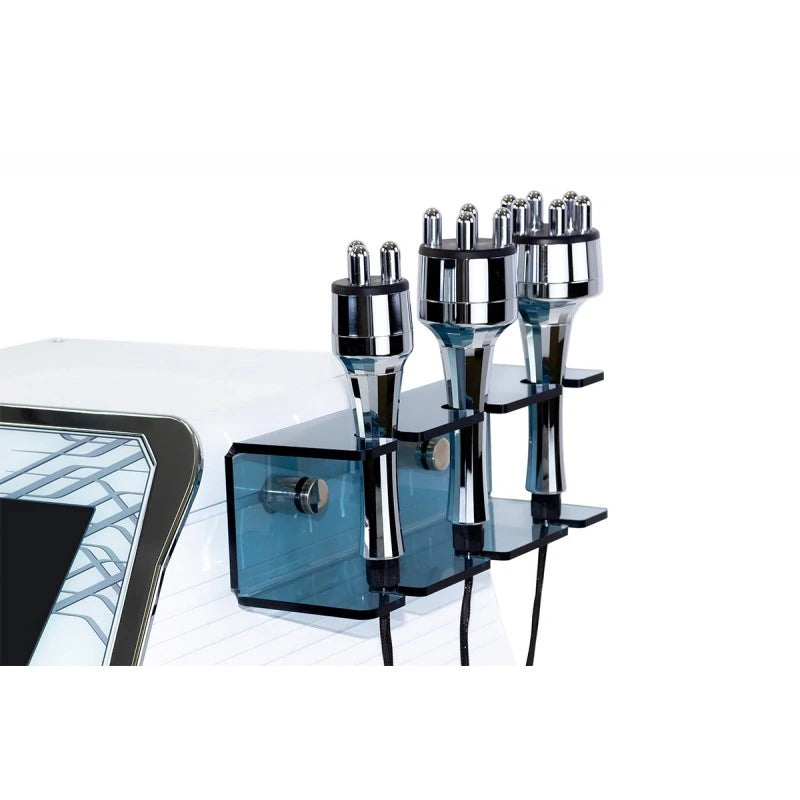

• Multipolar Radiofrequency with Thermal Sensors: Offers an elastic exposure energy of 15 to 50 J/cm² regulated by an integrated temperature sensor. Works at three distinct emission depths to adapt to the target tissue:

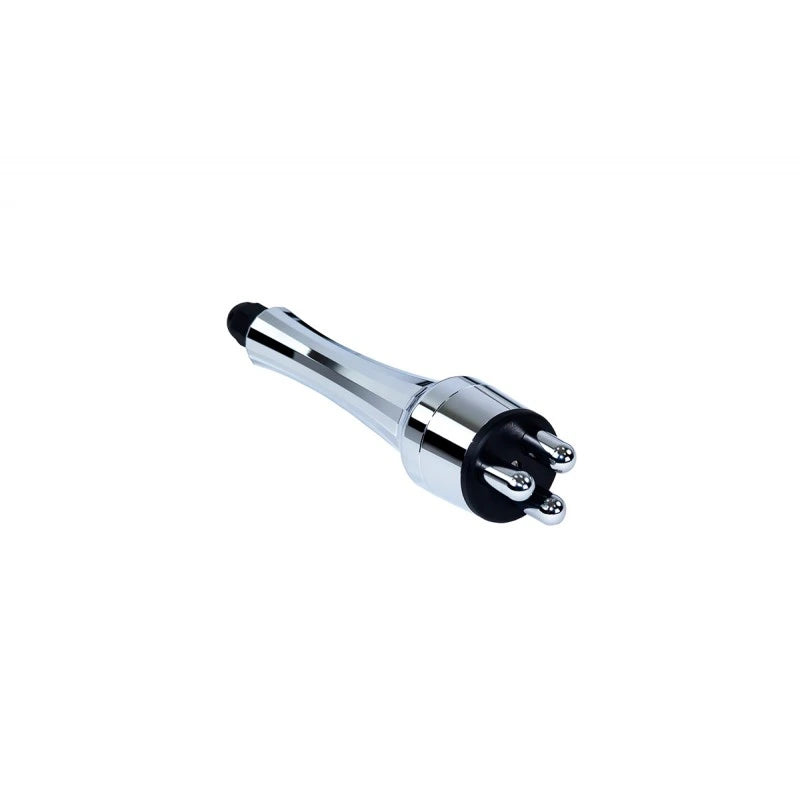

  • Tripolar Handpiece (2 MHz): Superficial action focused on delicate areas and fine facial lines.

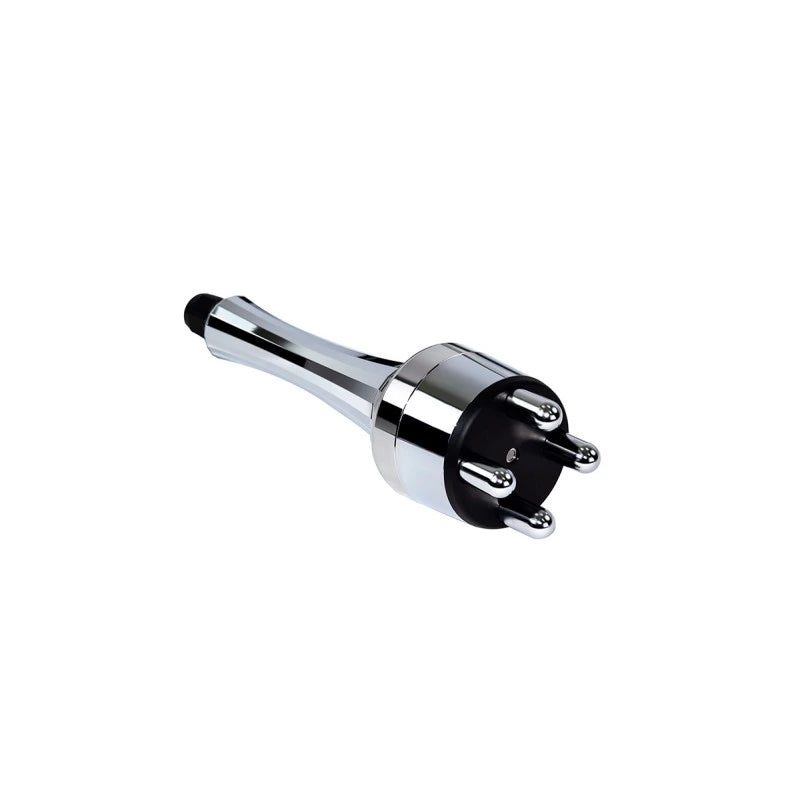

  • Tetrapolar Handpiece (1 MHz): Medium-level tension for the facial oval, neck, décolleté, and arms.

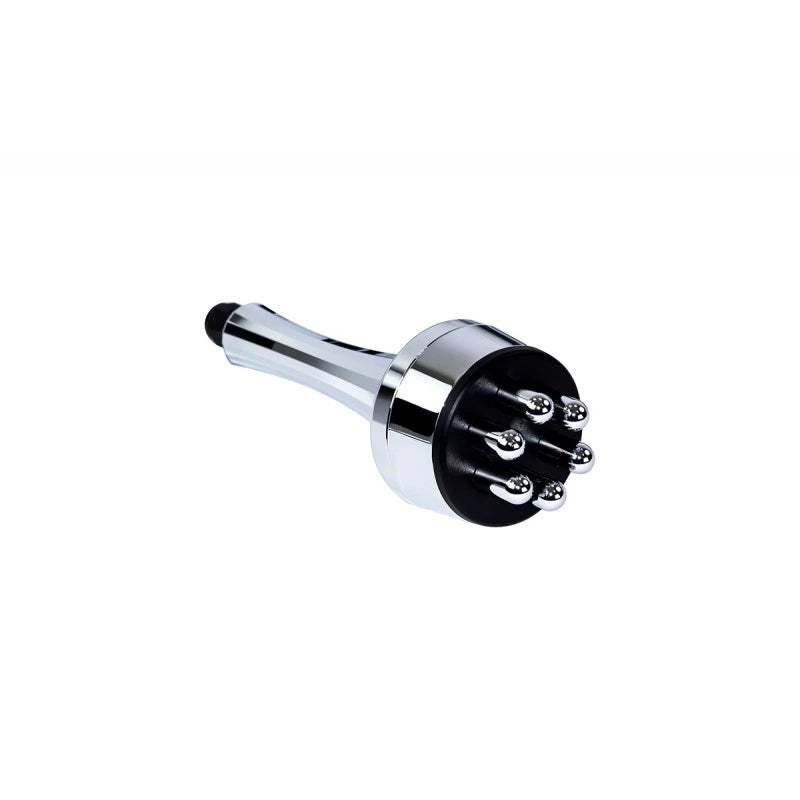

  • Sextopolar Handpiece (0.5 MHz): Maximum deep penetration to compact large body areas.

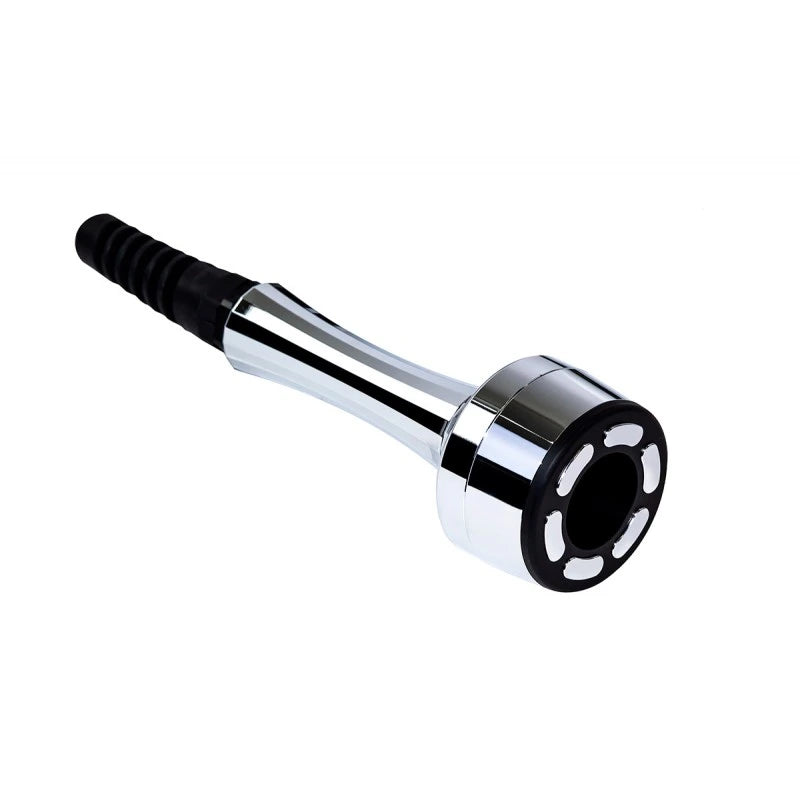

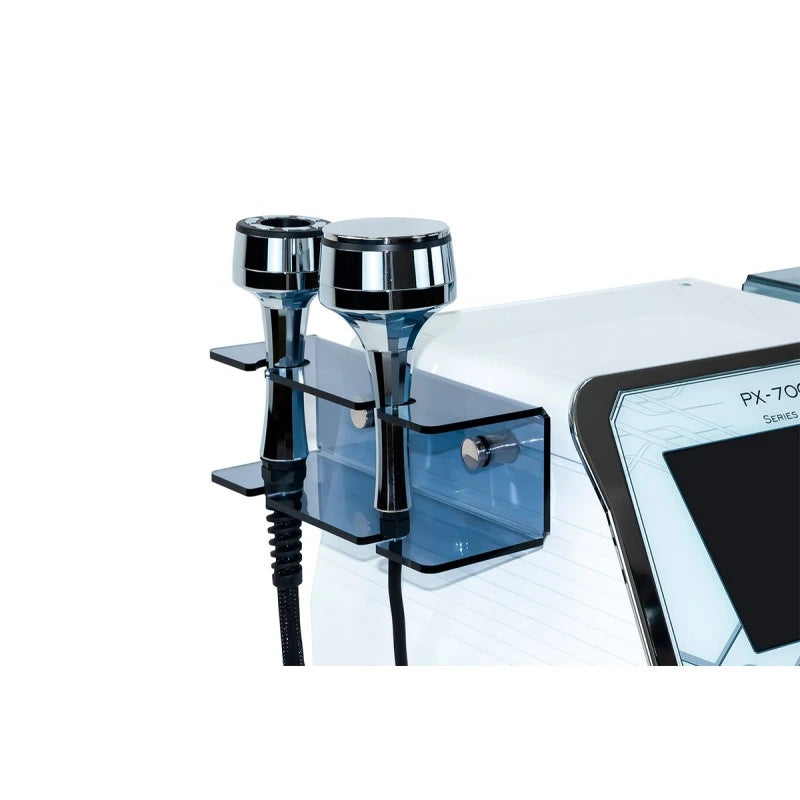

• Integrated Thermal Vacuotherapy (1-72 cmHg): Combines an elastic pneumatic suction pump (pulse and constant modes) with a 1 MHz radiofrequency signal. This negative pressure impeccably mobilizes tissues, activates blood circulation, quickly reduces edema, and accelerates toxin elimination.

High-Demand Clinical and Dermo-Aesthetic Indications

• Panniculopathies, Localized Fat, and Cellulite: Breaks down stubborn fat deposits, smooths orange peel skin, and redefines body contours.
• Skin Laxity, Gravitational Ptosis, and Loss of Facial Oval: Heats deep collagen to induce immediate contraction and stimulate elastic and long-lasting neocollagenesis.
• Lymphatic Infiltration, Scars, Stretch Marks, and Dullness: Clearly evacuates retained fluids, increases local immunity, and refines skin texture.

Technical Specifications and Official Parameters Table

Technical Application Protocol in the Cabin (Step by Step):

1. Hygiene and Initial Lipolytic Cavitation: Thoroughly clean the body area to be treated. Apply a generous layer of neutral ultrasonic conductive gel. Select the 38 kHz cavitation handpiece and choose the operating mode on the touch screen (A, B, or C depending on the volume of adipose panniculus). Move the head with slow passes, creating tactical folds to cleanly break the fat membranes.
2. Thermal Vacuotherapy and Endermic Mobilization: Remove the cavitation gel and introduce specific conductive oil for vacuum. Activate the vacuotherapy module, setting the suction range between 20-40 cmHg in pulse mode to activate express lymphatic drainage. Move the head towards the main lymph nodes distinctly; the combination of negative pressure and 1 MHz RF will impeccably evacuate toxins.
3. Thermal Lifting and Tissue Compaction: Clean the area and apply radiofrequency conductive gel. Choose the appropriate multipolar RF handpiece (e.g., Sextopolar 0.5 MHz for the body or Tetrapolar 1 MHz for the face and arms) and adjust the energy between 15-50 J/cm². Perform upward and circular passes flexibly: the integrated sensor will ensure that the tissue maintains a target temperature of 40-42°C to clearly contract collagen.
4. Completion of the Express Protocol: Cleanly remove any remaining gel. The patient will show a noticeable reduction in edema, increased firmness, and smoothness in the tissue micro-relief distinctly, allowing them to resume their activities immediately.

💡 Pro Tip: The most common operational error when starting with the PX-7000 Plus hardware is applying the cavitation head completely flat and tilted at 90 degrees, pointing directly at bone structures or deep organs. Because the low frequency of 38 kHz generates mechanical waves of great destructive intensity for lipids, if the wave cleanly and perpendicularly strikes a bone, it will cause an annoying acoustic reverberation in the patient's inner ear and can inflame the periosteum. Hold the fatty panniculus by forming a fold with your free hand and move the handpiece obliquely, always directing the acoustic energy parallel to the muscle wall. This strict methodological rigor will ensure excellent comfort, optimize the destruction of adipocytes, and consolidate the prestige of your advanced practice.

Engineering Guarantee and Official Training: Alvi Prague supports the PX-7000 Plus multidisciplinary platform with lifetime technical support and offers on-demand professional technical training services with certification, validating the operational excellence of your staff in the cabin excellently.

Click "Add to Cart", introduce the versatility of the 3 leading technologies of the Alvi Prague PX-7000 Plus system into your treatment menu, eliminate consumable costs, and maximize the billing of your advanced practice with premium results.
